MISSION 05 · BASIC ELECTRONICS
What happens when two LEDs must share one complete road?
3 · Split and Compare
Your new skill: Trace two outputs in one continuous path.
Revisit the skill you will reuse: Previous main-path mission
Match the names to your parts before you build. New parts appear when you first need them. You can point, say the name or show a grown-up.
A battery supplies energy that can make a light glow or a motor turn. A holder keeps its connections in place.
Look for: Find the + and - marks and the matching holder or snap connector.
Before using it: Use only the supply named in this mission. Never join + straight to -; disconnect before rewiring.
Your turn: With power disconnected, trace the path from + through the parts and back to -.
This reusable building board joins some holes with hidden metal strips, so we can connect parts without soldering.
Look for: Find the centre gap, row numbers and power rails. The gap separates the two halves.
Before using it: Five holes in one numbered strip usually join; the strip across the gap does not. Some power rails have a break. Match your board diagram.
Your turn: Point to two holes on the same connected strip, then two that are separated by the gap.
A wire makes an electrical connection between two points. A clip lead grips a terminal.
Look for: Jumpers have small plug ends; clip leads have metal jaws. Colour helps us track a connection.
Before using it: Colour does not change a wire's job. Check both ends and keep bare metal away from other terminals.
Your turn: Follow one wire from start to finish and name what it joins.
A resistor limits current in a path. Beside our LED it helps protect the light from too much current. Its resistance is measured in ohms.
Look for: Look for a small body with two legs and coloured bands; match its labelled value to the mission.
Before using it: A resistor can face either way. Values such as 1 kΩ and 10 kΩ are different: k means one thousand. Keep the specified value.
Your turn: Point to the resistor in the LED path. Explain why replacing it with a plain wire is not our test.
A video demonstration will appear here when it is ready. You can follow the written step now.
Before we build, match these names to the parts in front of you. Battery and holder. A battery supplies energy that can make a light glow or a motor turn. A holder keeps its connections in place. Find the + and - marks and the matching holder or snap connector. Use only the supply named in this mission. Never join + straight to -; disconnect before rewiring. Breadboard. This reusable building board joins some holes with hidden metal strips, so we can connect parts without soldering. Find the centre gap, row numbers and power rails. The gap separates the two halves. Five holes in one numbered strip usually join; the strip across the gap does not. Some power rails have a break. Match your board diagram. Jumper wire and clip lead. A wire makes an electrical connection between two points. A clip lead grips a terminal. Jumpers have small plug ends; clip leads have metal jaws. Colour helps us track a connection. Colour does not change a wire's job. Check both ends and keep bare metal away from other terminals. Resistor. A resistor limits current in a path. Beside our LED it helps protect the light from too much current. Its resistance is measured in ohms. Look for a small body with two legs and coloured bands; match its labelled value to the mission. A resistor can face either way. Values such as 1 kΩ and 10 kΩ are different: k means one thousand. Keep the specified value. Pause and point to the part that will do the main job in this mission. If it is missing or looks different, ask a grown-up before building.
WHAT YOU'LL USE
Kit list: match the named parts to your box and its component cards. Home list: gather these before starting; some may also be supplied in your kit. Reuse components between missions. Stop and ask a grown-up if an essential part or label is missing.
BEFORE YOU BUILD
Use two matching 3V LEDs and the 9V source. Keep both LED long legs facing the direction shown. This mission has one continuous road.
YOUR REWARD
PREDICT BEFORE YOU BEGIN
What do you think will happen? Say it, point to it or draw it. Then test your idea.
YOUR CHALLENGE
NEW POWER-UP
Trace two outputs in one continuous path.
You already know: one LED can use one protected path New power-up: series circuits and shared current This prepares you for: giving each light its own branch
Each coloured strip is one connected group. Different numbered rows stay separate. This explains the board; use the mission’s exact connection reference for component positions. Check rail breaks on your supplied board.

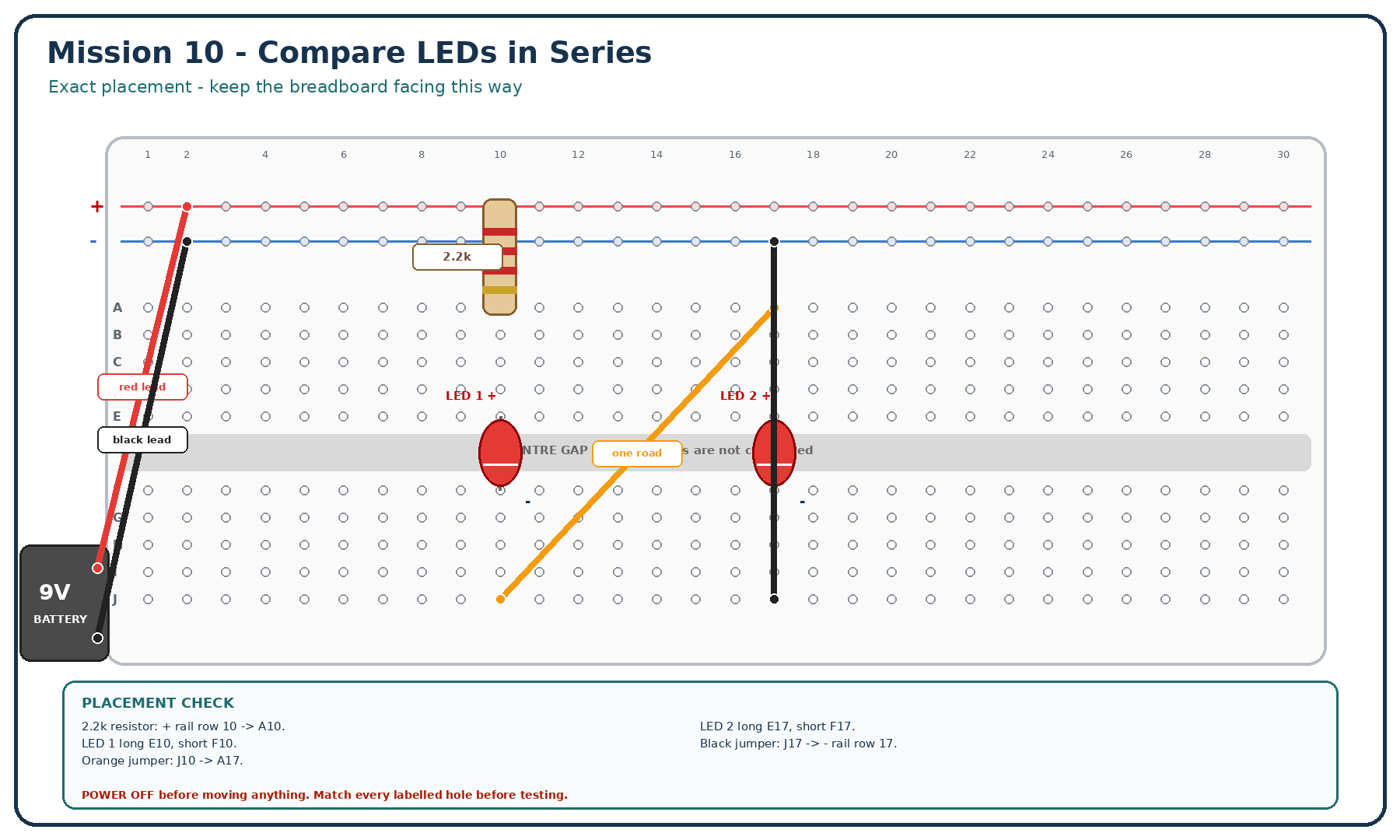

CONNECTION MAP
BUILD PATH
STEP 1 OF 9
Place two LEDs with their long legs facing the direction current will enter.
A video demonstration will appear here when it is ready. You can follow the written step now.
Place two LEDs with their long legs facing the direction current will enter.
WHAT'S REALLY HAPPENING?
In a series circuit, the same current travels through every component. The available battery voltage is shared across the components.
Some decorative lights and battery packs use series connections, although real designs require careful voltage planning.
FAIR-TEST CHALLENGE
Change one feature, keep the rest the same and repeat your comparison.
WHEN IT DOESN'T WORK YET
Likely cause: One LED may be backwards
Try this first: Power off and check both LED directions.
Likely cause: One LED may be much dimmer or bypassed
Try this first: Shade the LEDs and check the link between them.
Likely cause: They are not truly in one path
Try this first: Remove shortcut wires and rebuild one continuous chain.
CLEAN, RESET AND STORE
Switch off and disconnect all power. Let moving parts stop. Put the parts back in their kit compartments.
NEXT SKILL
Compare independent branches with the previous series circuit.
